Automatic Smart T-shirt Round Neck-hoodie Ribbed Collar/hem Overlock Sewing Machine
An automatic sewing machine, controlled by a computer, is equipped with an automatic monitoring system, feeding system, and automatic starting, sewing according to a set trajectory, stopping needles, cutting threads, etc. It can automatically complete a certain sewing process.
Keywords: Sewing equipment
products model:
AC1801-PEGASUS
Category:
Product Introduction
Product video：

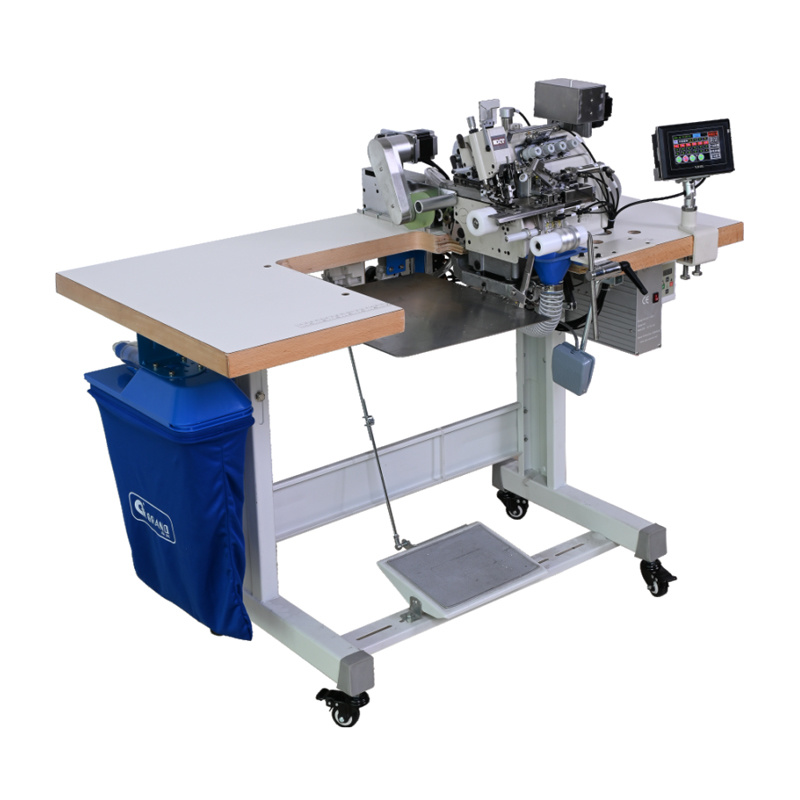

AC1801-PEGASUS Automatic Smart T-shirt Round Neck-hoodie Ribbed Collar/hem Overlock Sewing Machine Product image:
Product name
| Automatic Smart T-shirt Round Neck-hoodie Ribbed Collar/hem Overlock Sewing Machine |
Product model
| AC1801-PEGASUS |
Product introduction

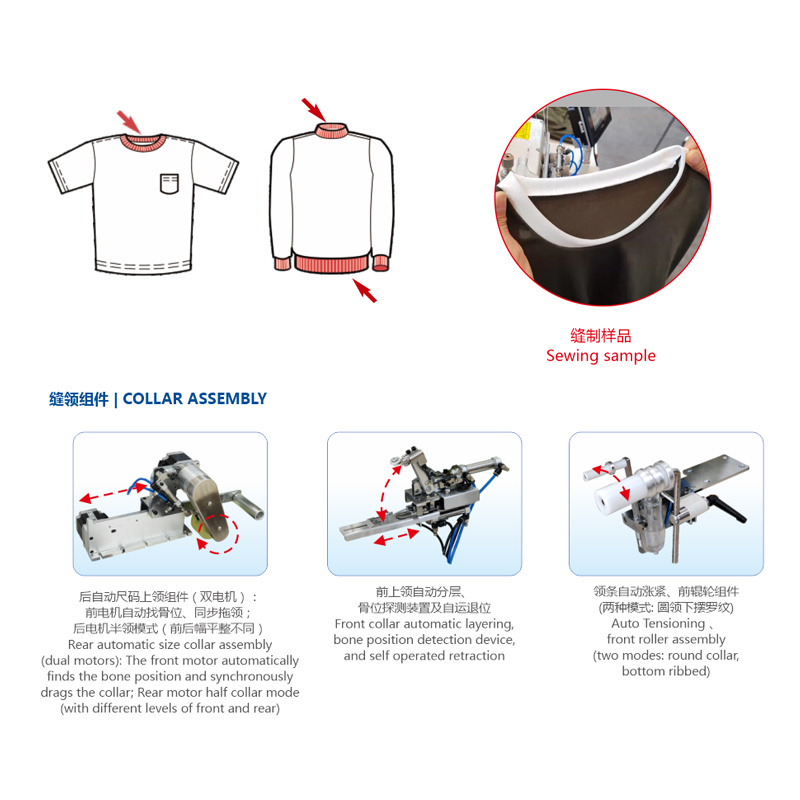

| The circular ribbed elastic band is used for weaving products such as round necks and waistbands of sewn T-shirts. The display panel is equipped with large, medium, and small neckline sizes and corresponding 6-segment melt fit collar, which can be modified and set. Customized data can be saved for convenient and quick use; When sewing, select the corresponding size and set the number of stitches for each segment of the seam. Install the collar strip on the guide rail of the sewing machine, and through automatic layering and bone finding positioning of the collar strip, you only need to focus on controlling the body seam material to sew the ribbed width evenly and uniformly, improving the efficiency of collar sewing and product quality; The display panel is equipped with real-time production and efficiency statistics for viewing. |
Product features
| Automatic collar position recognition and positioning,Layered positioning, and seam starting positioning;Collar size: 20-100cm, Accuracy ± 2mm; |
| Specification parameters： | |||
| Air pressure : 6KG | Rotation speed : 4500RPM | Size（L*W*H) : 1.38*0.78*1.36M | |
| Sewn collar width: 1.5-4.5CM | Sewn collar perimeter: 40-65CM | Sewn hem perimeter: 60-120CM | Collar tightness: 2-9CM |
| Accuracy rating: ±2mm | Waistband size: 35-140CM | Capacity : 145PCS/ hour | |
