8 Section Tension type computerized elastic metering device(Fission Type, Upper Feed)
An automatic sewing machine, controlled by a computer, is equipped with an automatic monitoring system, feeding system, and automatic starting, sewing according to a set trajectory, stopping needles, cutting threads, etc. It can automatically complete a certain sewing process.
Keywords: Sewing equipment
Category:
Product Introduction
Product video:

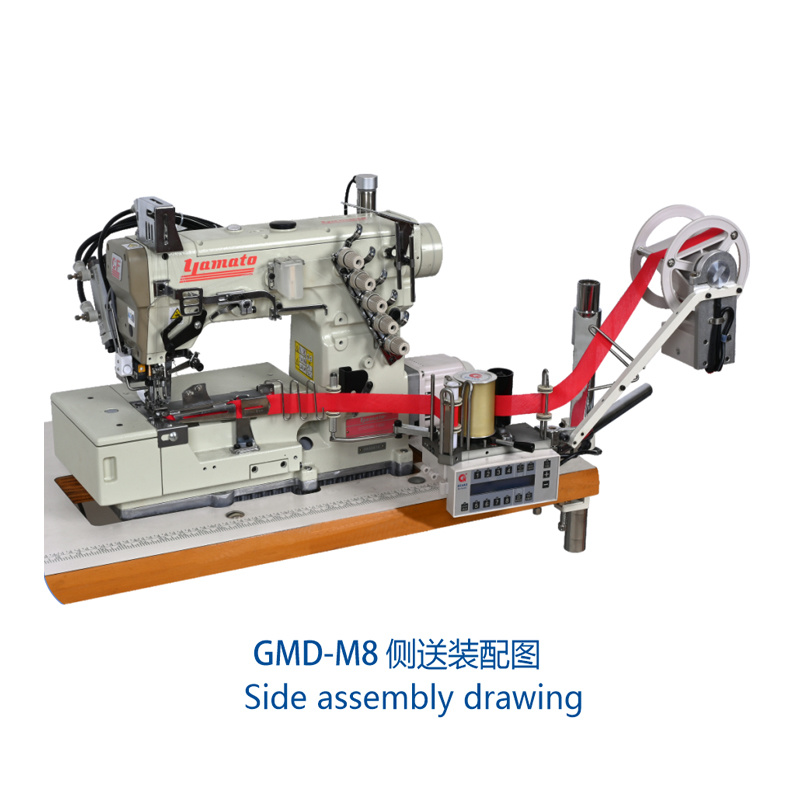

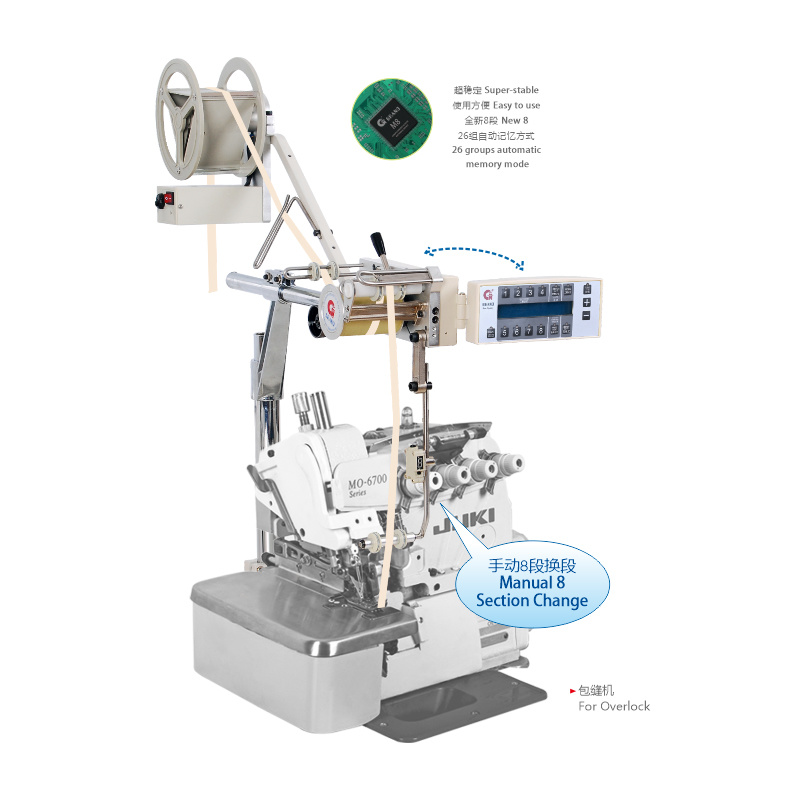

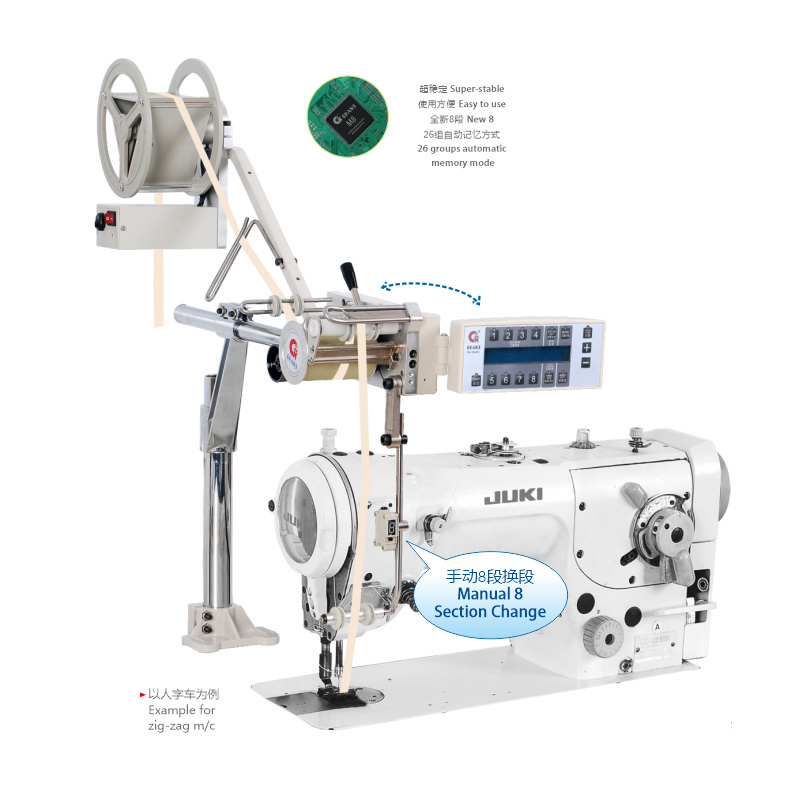

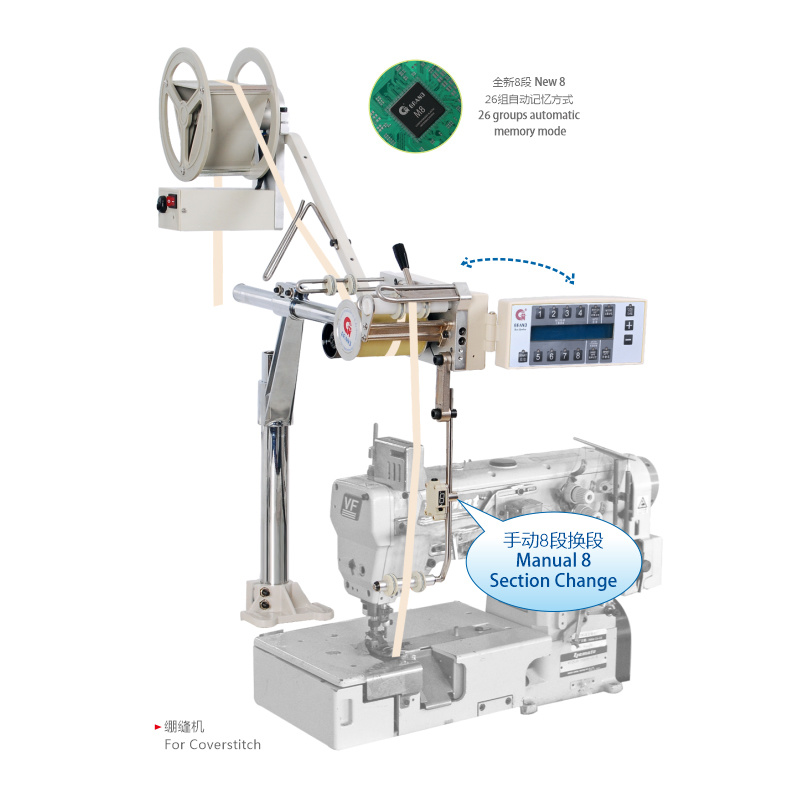

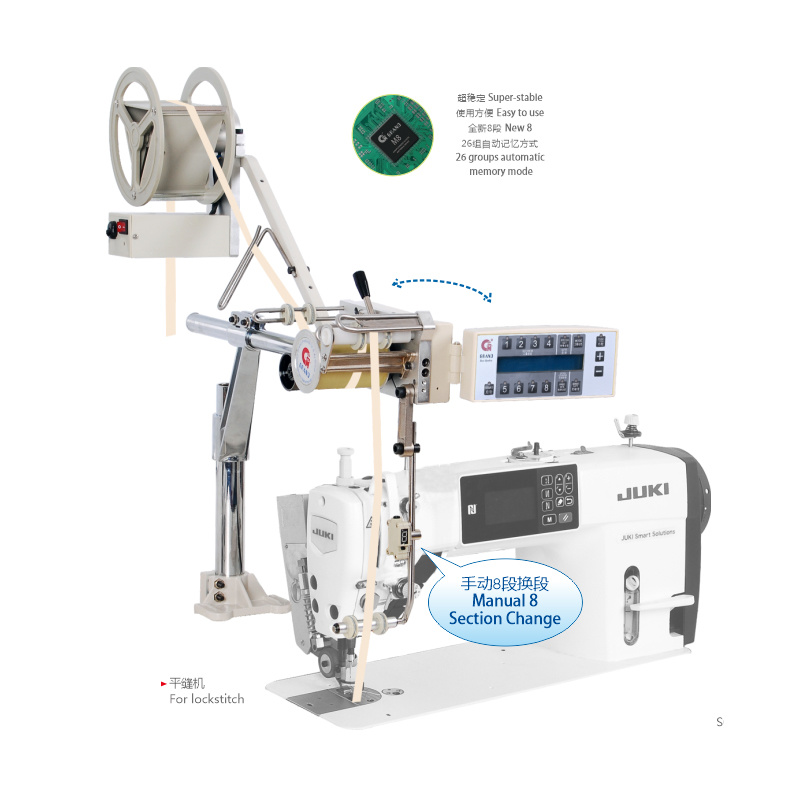

GMD-M8 Product pictures:

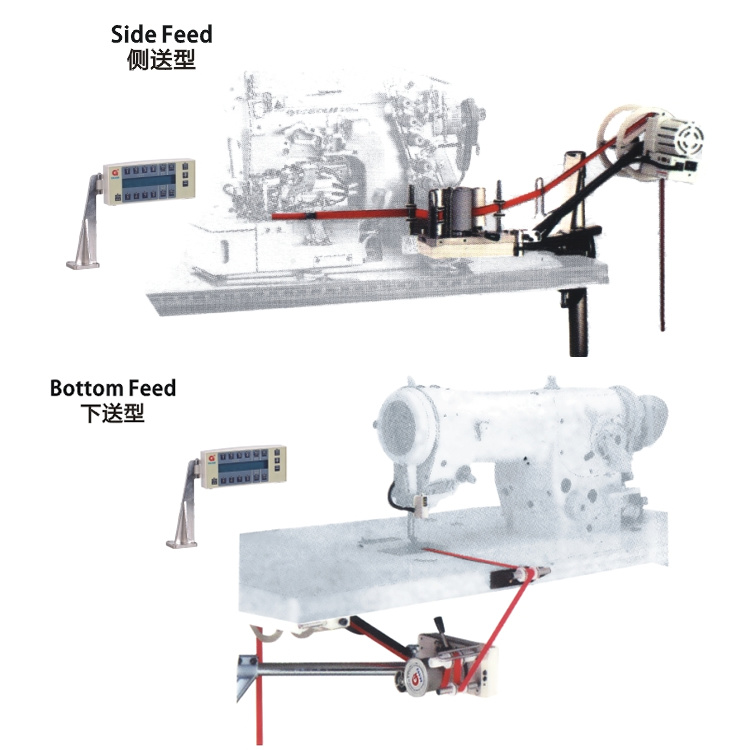

Side Feed or Bottom Feed Installation diagram:
| Name: | 8 Section Tension type computerized elastic metering device (Fission Type, Upper Feed) | ||
| Model: | GMD-M8 (Fission Type, Upper Feed) ; Derived Model：GMD-S8（Fission Type, Side Feed）; GMD-S8（Fission Type, Bottom Feed） | ||
| Merit: | (High-quality swimsuit underwear sewing equipment necessary) It can automatically sewing up to 8 continuous section to meet different sewing requiremets by pre-setting the tension and stitch in each section. Specially suited for attaching elastic in swimsuit leotard, Underwear, Sport wear, etc.It's really the best choice for garment factory with its reasonable structure, advanced design, easy operation, and installation, steady sewing quality and high efficiency. | ||
| Note Accessories: | E10 | LED and manual section change (Optional parts):This tiny display shows the current section being sewn and includes a swithch for manual section changes. | |
| SY | Fits on the machines hand wheel to contorl automatic section changes(Optional Parts). | ||
| EC | Operation Panel(Standard):For manual section changes. | ||
| E8 | Knee Switch(Standard):For manual section changes. | ||
| Technical Parameter: | Power: | 110V/240V | |
| Tension: | 0-99 | ||
| Stitch on per section | 0-999 Stitch | ||
| Sution | 0-8 Section | ||
| Memory | 26 Mode | ||
| SY stitch Counter | Optional | ||
| Section Change by Finger | Optional | ||
